| Device Type | Modbus TCP (Ethernet) | RS485 | Curtailment |
|---|---|---|---|

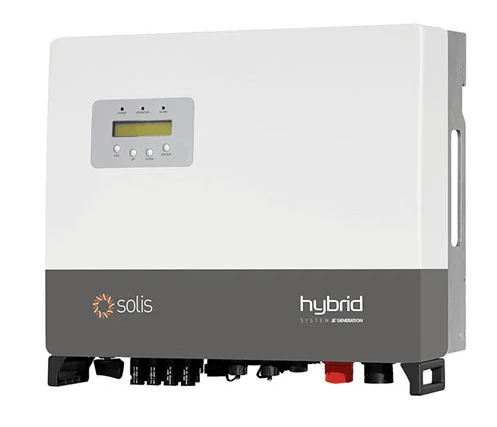

| Solis 3t10K HVES G5 | experimental | ✅ | ❌ (see below) |
| Solis S5-EH1P(3-6)K-L | ✅ (only with Solis data logger) | ||
| Solis S5-EH1P(8-10)K-L-PLUS | |||
| Solis S5-EA1P3K-L | |||
| Solis S6-EH3P(8-15)K02-NV-YD-L | |||
| Solis S6-EH3P(5-10)K-H-EU |
| Solis S6-EH3P(5-10)K2-H |
| Solis S6-EH3P(12-20)K-H |
| Solis S6-EA1P(3.6-6)K-L |
| Solis S6-EO1P(4-5)K-48-EU |
| Solis S6-EH3P(30-50)K-H |
Currently, only the connection via RS485 has been tested, but you may also be able to run the inverter via Ethernet.
Solis Inverter Firmware Ensure that you have the latest firmware installed on your Solis inverter. The functionality of external control features like battery control and curtailment is dependent on the firmware version.
The setup of your Solis is an important factor in which EMS-features supported:
Mermaid chart placeholder
The integration for curtailment is planned for Q4 2025, as we are waiting for a new firmware version by Solis to include curtailment registers. At the moment, there are registers available to set the output power of the inverter, but they write towards the solis flash memory, which is not meant for frequent writes. This is why we are waiting for a new firmware version to be released by Solis, which will allow us to write the curtailment values without writing towards the flash memory. Writing towards the flash memory is not recommended, as it can lead to a premature failure of the inverter.
The wiring between the SmartgridOne Controller and the Solis can be done with the following guides:
| Model | Page |
|---|---|
| 3t10K HVES G5 | Wiring configuration for 3t10K HVES G5 |
| S5-EH1P(3-6)K-L | Wiring configuration for S5/S6 Series |
| S5-EH1P(8-10)K-L-PLUS | |
| S5-EA1P3K-L | |
| S6-EH3P(8-15)K02-NV-YD-L | |
| S6-EH3P(5-10)K-H-EU | |
| S6-EH3P(5-10)K2-H | |
| S6-EH3P(12-20)K-H | |
| S6-EA1P(3.6-6)K-L | |
| S6-EO1P(4-5)K-48-EU | |
| S6-EH3P(30-50)K-H |
If your model is not listed, we refer to the manual of the Solis inverter. It should always include a section on how to wire a rs485 communication with external EMS-systems.
