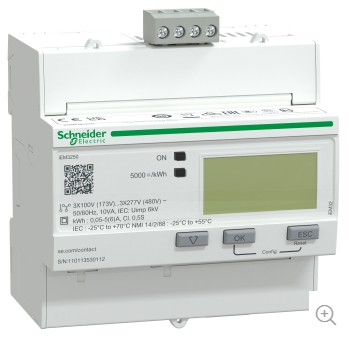

Unterstützte Geräte
| Device Type | Modbus TCP (Ethernet) | RS485 |
|---|---|---|
| Schneider-Electric IEM 3150 | ❌ | ✅ |
| Schneider-Electric IEM 3155 | ||
| Schneider-Electric IEM 3250 | ||
| Schneider-Electric IEM 3255 | ||
| Schneider-Electric IEM 3350 | ||
| Schneider-Electric IEM 3355 | ||
| Schneider-Electric IEM 3455 | ||
| Schneider-Electric IEM 3555 |
warnung
Nicht alle Energiezähler der Schneider-Electric IEM 3000-Serie registrieren exportierte Energie! Überprüfen Sie im Zweifelsfall beim Hersteller des Energiezählers. Mindestens IEM 3150, IEM 3250 und IEM 3350 erlauben nicht das Auslesen von exportierter Energie.
Verkabelung
RS485 Wiring
- For correct RS485 wiring: Follow the guidelines for RS485 wiring.
- If the wiring shown in the table below is incorrect, please let us know.
- There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
| Device | SmartgridOne Controller model OM1 | SmartgridOne Controller model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| D1 | RS485 A | RS485_POS | RS485 A | TX+ |
| D0 | RS485 B | RS485_NEG | RS485 B | TX- |
| 0V | RS GND | GND | Not available | G |
Konfiguration
NOTE: RS485 Device Addresses

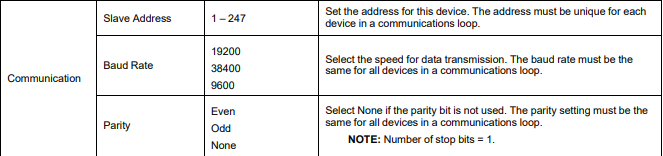

- You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
- Use lower addresses first (1, 2, ...) because the SmartgridOne Controller will find them faster!
- For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The SmartgridOne Controller will scan on those first.

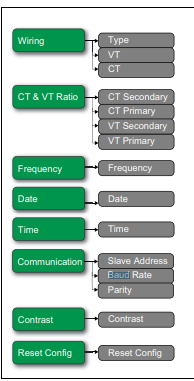

Überprüfen Sie das Handbuch des Geräts, um zu erfahren, wie Sie ins Konfigurationsmenü des Energiezählers gelangen.
