Ondersteunde Apparaten
| Device Type | Modbus TCP (Ethernet) | RS485 |
|---|---|---|
| Schneider-Electric PM 8000 | ✅ | ✅ |
Bekabeling
Ethernet
Voor correcte ethernetbekabeling: Volg de de richtlijnen voor ethernetbekabeling.
RS485

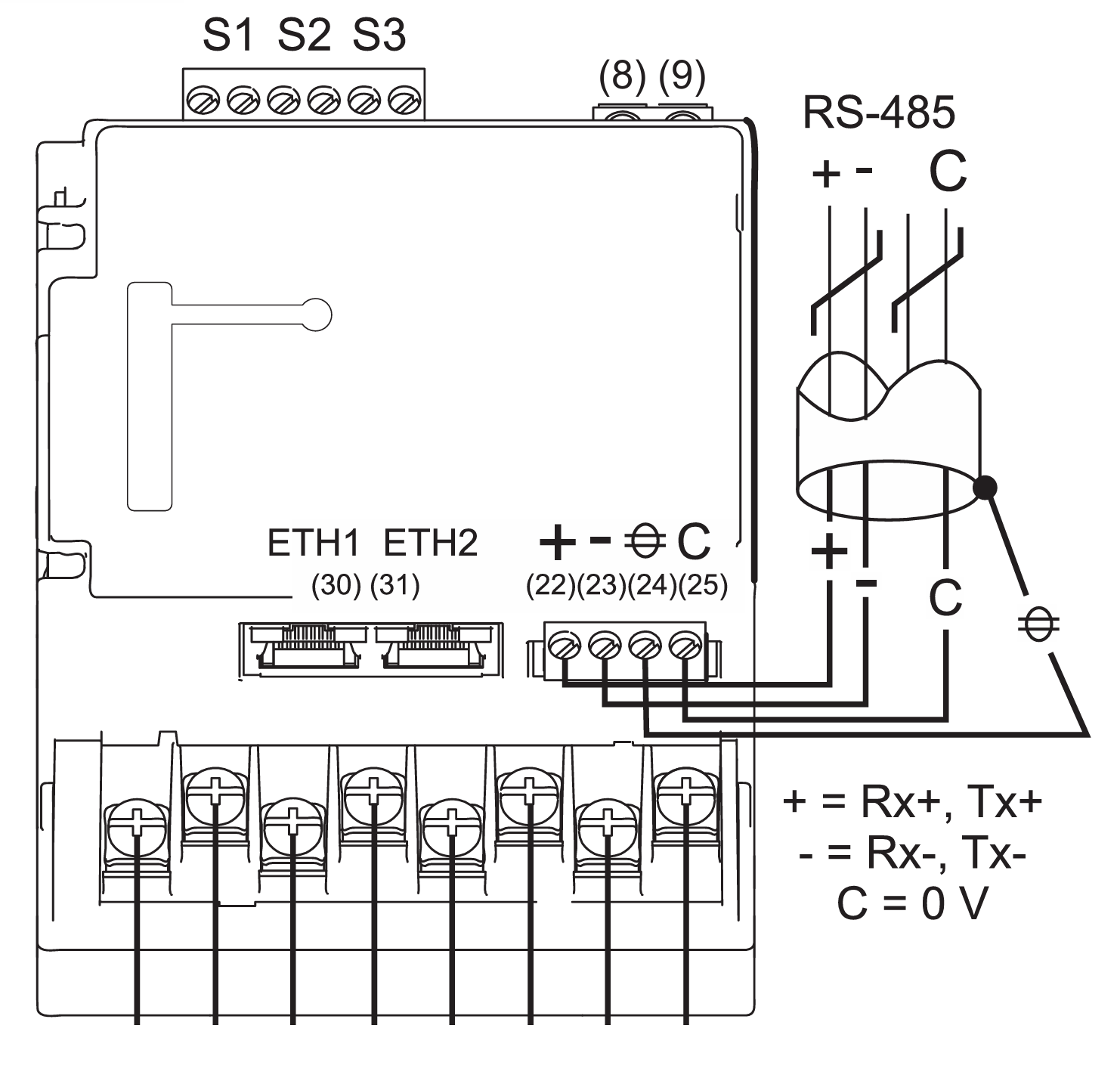

RS485 Wiring
- For correct RS485 wiring: Follow the guidelines for RS485 wiring.
- If the wiring shown in the table below is incorrect, please let us know.
- There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
| Device | SmartgridOne Controller model OM1 | SmartgridOne Controller model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| Terminal 22 / + | RS485 A | RS485_POS | RS485 A | TX+ |
| Terminal 23 / - | RS485 B | RS485_NEG | RS485 B | TX- |
| Terminal 25 / C | RS GND | GND | Not available | G |
Configuratie
Ethernet
Zie de handleiding van het apparaat.
RS485
NOTE: RS485 Device Addresses
- You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
- Use lower addresses first (1, 2, ...) because the SmartgridOne Controller will find them faster!
- For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The SmartgridOne Controller will scan on those first.
Bekijk de handleiding van het apparaat voor instructies over het wijzigen van het Modbus-adres.
