Dispositivi Supportati

Device Type	Modbus TCP (Ethernet)	RS485	Curtailment
...	❌	✅	❌

DA FARE: Completare la tabella

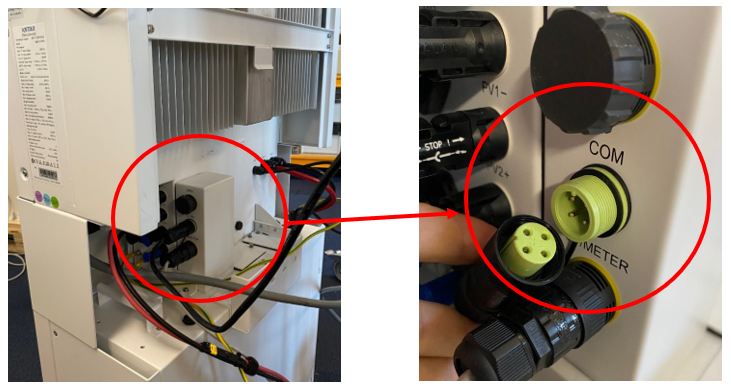

Cablaggio

RS485

RS485 Wiring

• For correct RS485 wiring: Follow the guidelines for RS485 wiring.
• If the wiring shown in the table below is incorrect, please let us know.
• There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.

Device	SmartgridOne Controller model OM1	SmartgridOne Controller model IG8	RS485-USB converter	RS485-Ethernet converter
	RS485 A	RS485_POS	RS485 A	TX+
	RS485 B	RS485_NEG	RS485 B	TX-
	RS GND	GND	Not available	G

DA FARE: Completare i pin del cavo nella tabella.

Configurazione

NOTE: RS485 Device Addresses

• You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
• Use lower addresses first (1, 2, ...) because the SmartgridOne Controller will find them faster!
• For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The SmartgridOne Controller will scan on those first.

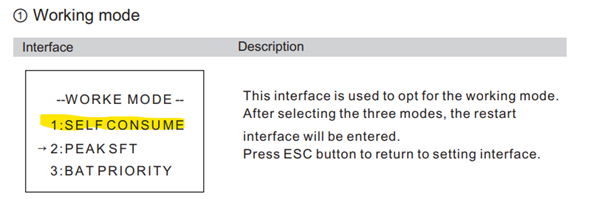

1. Imposta la modalità di lavoro su Consumo Autonomo

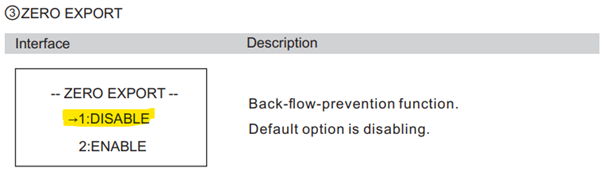

2. Imposta Zero Export su Disabilitato

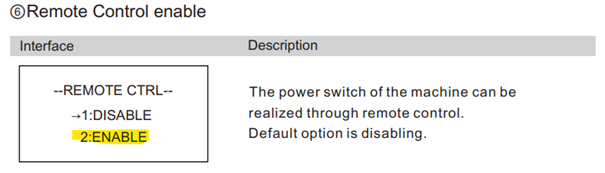

3. Imposta Controllo Remoto su Abilitato

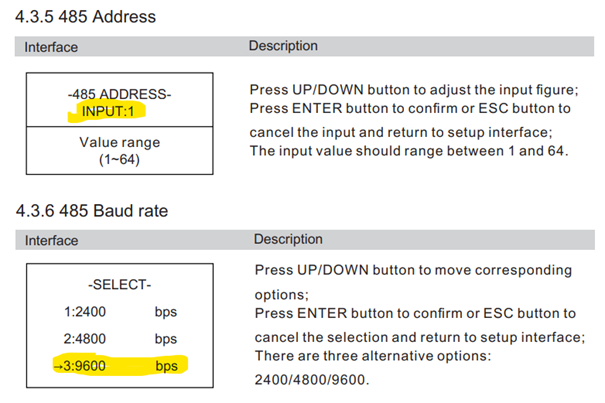

4. Imposta l'indirizzo RS485. La velocità di baud predefinita è 9600, in caso contrario, impostala su 9600.

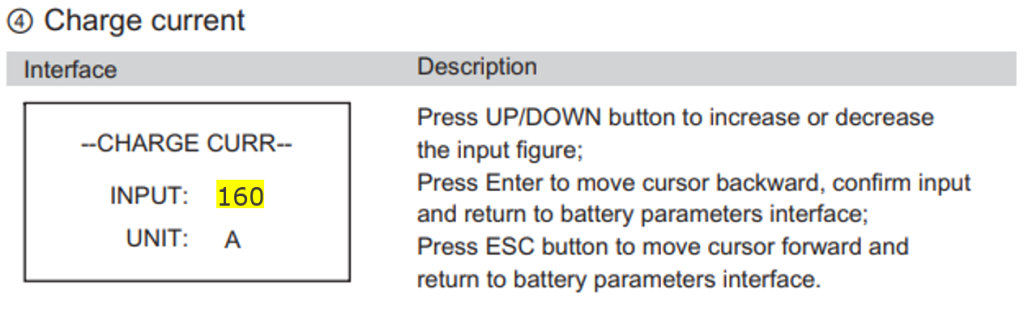

5. Imposta la corrente di carica. Imposta la corrente di carica.

IMPORTANTE!

Per un 5KT impostala a 100 Per un 10KT impostala a 160

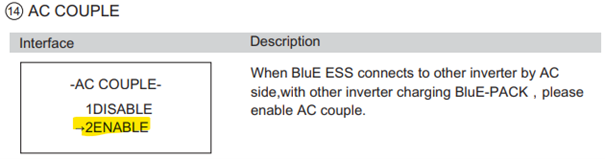

6. Imposta AC Couple su Abilitato
