Appareils pris en charge

Device TypeVariantsModbus TCP (Ethernet)RS485Curtailment
SG04LP3-EUSUN-5/6/8/10/12K
SG01LP1-EUSUN-12/14/16K

Câblage

RS485

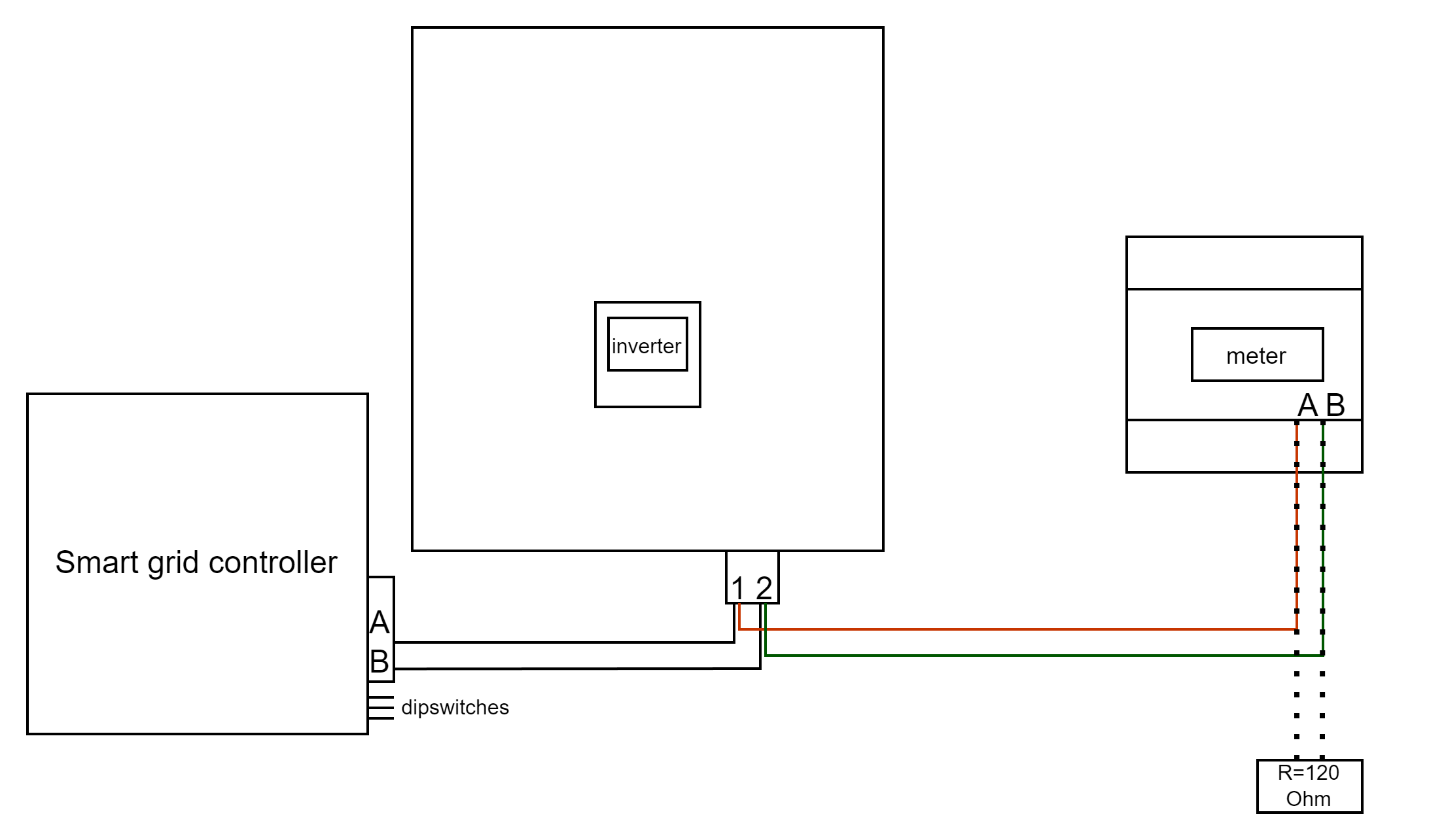

RS485 Wiring
  • For correct RS485 wiring: Follow the guidelines for RS485 wiring.
  • If the wiring shown in the table below is incorrect, please let us know.
  • There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.

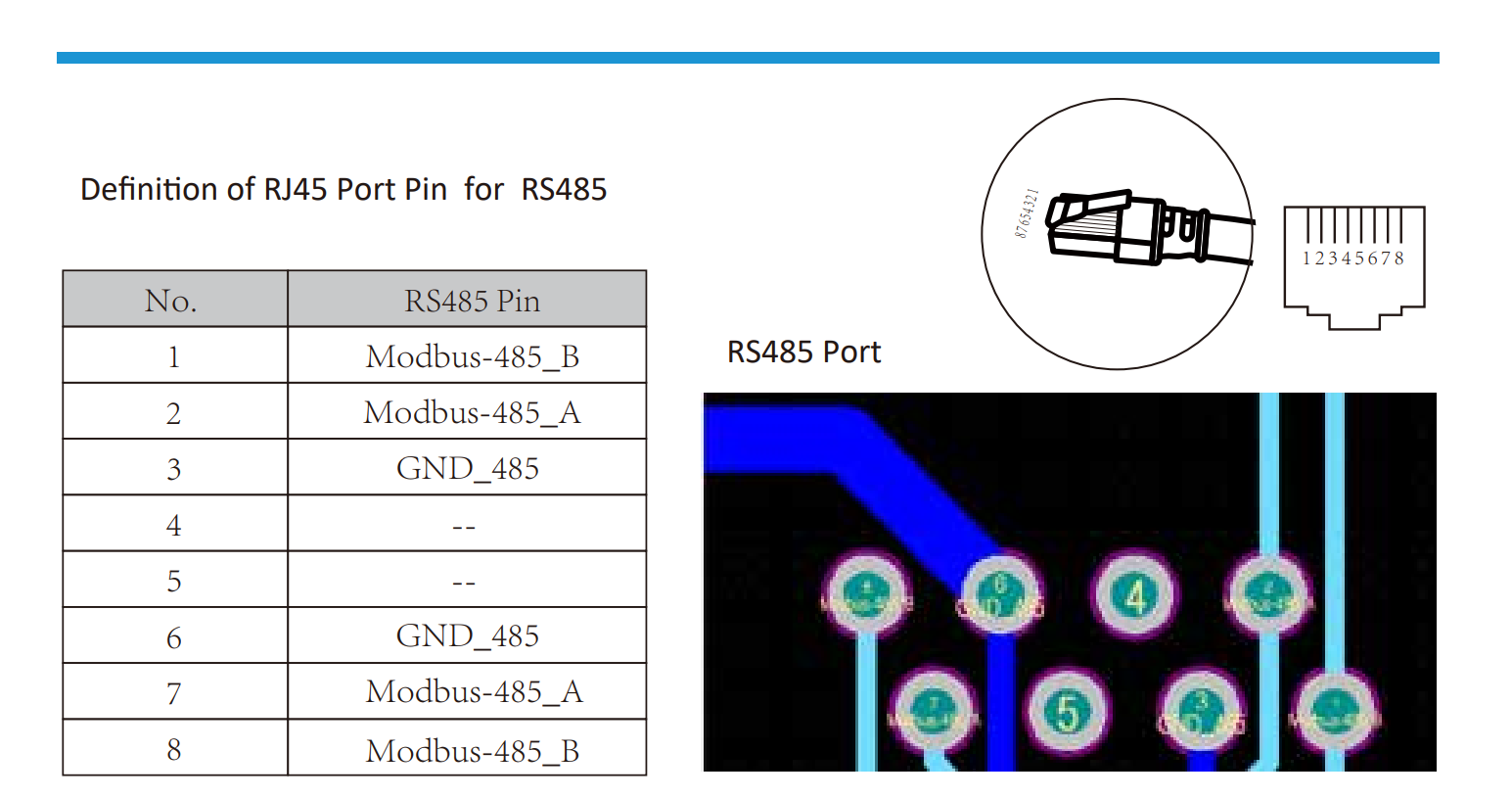

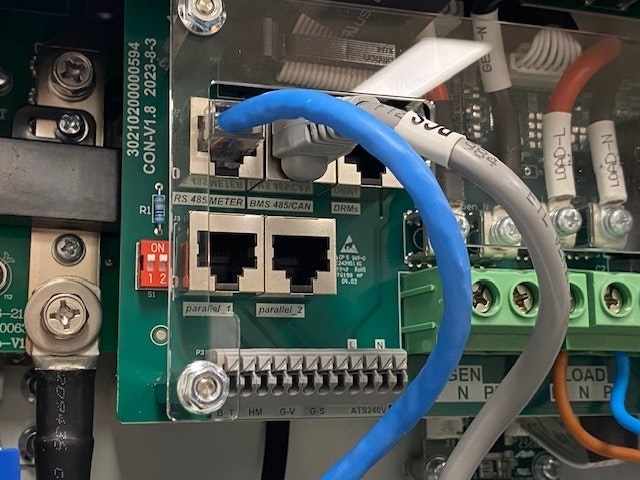

DeviceSmartgridOne Controller model OM1SmartgridOne Controller model IG8RS485-USB converterRS485-Ethernet converter
Pin 1 / Modbus-485_B RS485 ARS485_POSRS485 ATX+
Pin 2 / Modbus-485_A RS485 BRS485_NEGRS485 BTX-
Pin 3 / GND_485 RS GNDGNDNot availableG
Image 1
Image 1
Image 1

Configuration

NOTE: RS485 Device Addresses
  • You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
  • Use lower addresses first (1, 2, ...) because the SmartgridOne Controller will find them faster!
  • For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The SmartgridOne Controller will scan on those first.

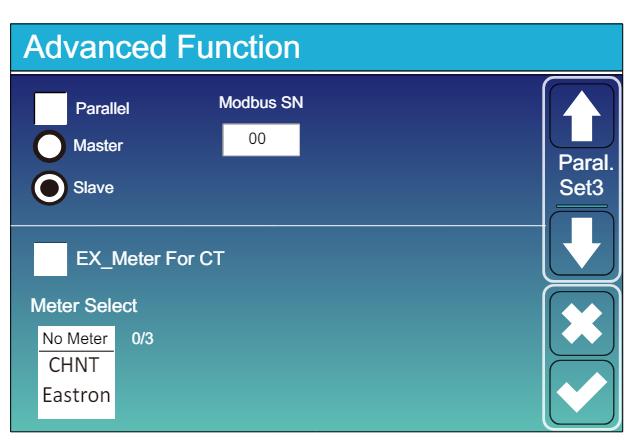

Allez à “Écran principal” >> “Paramètres du système” >> “Fonction avancée.”

  • Le SN Modbus doit être réglé sur n'importe quel numéro entre 1 et 247. Ne sélectionnez pas 0 !! Notez que s'il y a plusieurs appareils sur le bus RS485, chacun doit se voir attribuer un numéro unique. C'est l'adresse.
  • L'esclave doit être coché.
  • Ce n'est que lorsqu'un compteur supplémentaire est connecté directement à l'onduleur que “EX_meter For CT” doit être coché. S'il n'y a qu'un compteur en parallèle avec le SmartgridOne Controller, il doit être décoché.
  • Assurez-vous que les paramètres suivants sont tous corrects : "Max A Charge", "Max A Discharge", "Grid Charge Ampere"
Image 1
