Solax

支持的设备

Device Type	Modbus TCP (Ethernet)	RS485	Curtailment
Solax X1 Hybrid G4	✅	✅	❌
Solax X3 Hybrid G4
Solax IES
Solax ESS-TRENE	⌛ (计划中)	⌛ (计划中)	✅
Solax ESS-AELIO

安装

第三方文档

以下文档摘自 homeassistant-solax-modbus 公开的 GitHub 仓库。 原始文档可以在 这里 找到。 对文档的作者给予了感谢。

注意：以下文档并非为 SmartgridOne Controller 专门定制，而是提供了如何设置 Solax 逆变器的 Modbus 通信的一般说明。

License

                               Apache License
                           Version 2.0, January 2004
                        http://www.apache.org/licenses/

   TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

   1. Definitions.

      "License" shall mean the terms and conditions for use, reproduction,
      and distribution as defined by Sections 1 through 9 of this document.

      "Licensor" shall mean the copyright owner or entity authorized by
      the copyright owner that is granting the License.

      "Legal Entity" shall mean the union of the acting entity and all
      other entities that control, are controlled by, or are under common
      control with that entity. For the purposes of this definition,
      "control" means (i) the power, direct or indirect, to cause the
      direction or management of such entity, whether by contract or
      otherwise, or (ii) ownership of fifty percent (50%) or more of the
      outstanding shares, or (iii) beneficial ownership of such entity.

      "You" (or "Your") shall mean an individual or Legal Entity
      exercising permissions granted by this License.

      "Source" form shall mean the preferred form for making modifications,
      including but not limited to software source code, documentation
      source, and configuration files.

      "Object" form shall mean any form resulting from mechanical
      transformation or translation of a Source form, including but
      not limited to compiled object code, generated documentation,
      and conversions to other media types.

      "Work" shall mean the work of authorship, whether in Source or
      Object form, made available under the License, as indicated by a
      copyright notice that is included in or attached to the work
      (an example is provided in the Appendix below).

      "Derivative Works" shall mean any work, whether in Source or Object
      form, that is based on (or derived from) the Work and for which the
      editorial revisions, annotations, elaborations, or other modifications
      represent, as a whole, an original work of authorship. For the purposes
      of this License, Derivative Works shall not include works that remain
      separable from, or merely link (or bind by name) to the interfaces of,
      the Work and Derivative Works thereof.

      "Contribution" shall mean any work of authorship, including
      the original version of the Work and any modifications or additions
      to that Work or Derivative Works thereof, that is intentionally
      submitted to Licensor for inclusion in the Work by the copyright owner
      or by an individual or Legal Entity authorized to submit on behalf of
      the copyright owner. For the purposes of this definition, "submitted"
      means any form of electronic, verbal, or written communication sent
      to the Licensor or its representatives, including but not limited to
      communication on electronic mailing lists, source code control systems,
      and issue tracking systems that are managed by, or on behalf of, the
      Licensor for the purpose of discussing and improving the Work, but
      excluding communication that is conspicuously marked or otherwise
      designated in writing by the copyright owner as "Not a Contribution."

      "Contributor" shall mean Licensor and any individual or Legal Entity
      on behalf of whom a Contribution has been received by Licensor and
      subsequently incorporated within the Work.

   2. Grant of Copyright License. Subject to the terms and conditions of
      this License, each Contributor hereby grants to You a perpetual,
      worldwide, non-exclusive, no-charge, royalty-free, irrevocable
      copyright license to reproduce, prepare Derivative Works of,
      publicly display, publicly perform, sublicense, and distribute the
      Work and such Derivative Works in Source or Object form.

   3. Grant of Patent License. Subject to the terms and conditions of
      this License, each Contributor hereby grants to You a perpetual,
      worldwide, non-exclusive, no-charge, royalty-free, irrevocable
      (except as stated in this section) patent license to make, have made,
      use, offer to sell, sell, import, and otherwise transfer the Work,
      where such license applies only to those patent claims licensable
      by such Contributor that are necessarily infringed by their
      Contribution(s) alone or by combination of their Contribution(s)
      with the Work to which such Contribution(s) was submitted. If You
      institute patent litigation against any entity (including a
      cross-claim or counterclaim in a lawsuit) alleging that the Work
      or a Contribution incorporated within the Work constitutes direct
      or contributory patent infringement, then any patent licenses
      granted to You under this License for that Work shall terminate
      as of the date such litigation is filed.

   4. Redistribution. You may reproduce and distribute copies of the
      Work or Derivative Works thereof in any medium, with or without
      modifications, and in Source or Object form, provided that You
      meet the following conditions:

      (a) You must give any other recipients of the Work or
          Derivative Works a copy of this License; and

      (b) You must cause any modified files to carry prominent notices
          stating that You changed the files; and

      (c) You must retain, in the Source form of any Derivative Works
          that You distribute, all copyright, patent, trademark, and
          attribution notices from the Source form of the Work,
          excluding those notices that do not pertain to any part of
          the Derivative Works; and

      (d) If the Work includes a "NOTICE" text file as part of its
          distribution, then any Derivative Works that You distribute must
          include a readable copy of the attribution notices contained
          within such NOTICE file, excluding those notices that do not
          pertain to any part of the Derivative Works, in at least one
          of the following places: within a NOTICE text file distributed
          as part of the Derivative Works; within the Source form or
          documentation, if provided along with the Derivative Works; or,
          within a display generated by the Derivative Works, if and
          wherever such third-party notices normally appear. The contents
          of the NOTICE file are for informational purposes only and
          do not modify the License. You may add Your own attribution
          notices within Derivative Works that You distribute, alongside
          or as an addendum to the NOTICE text from the Work, provided
          that such additional attribution notices cannot be construed
          as modifying the License.

      You may add Your own copyright statement to Your modifications and
      may provide additional or different license terms and conditions
      for use, reproduction, or distribution of Your modifications, or
      for any such Derivative Works as a whole, provided Your use,
      reproduction, and distribution of the Work otherwise complies with
      the conditions stated in this License.

   5. Submission of Contributions. Unless You explicitly state otherwise,
      any Contribution intentionally submitted for inclusion in the Work
      by You to the Licensor shall be under the terms and conditions of
      this License, without any additional terms or conditions.
      Notwithstanding the above, nothing herein shall supersede or modify
      the terms of any separate license agreement you may have executed
      with Licensor regarding such Contributions.

   6. Trademarks. This License does not grant permission to use the trade
      names, trademarks, service marks, or product names of the Licensor,
      except as required for reasonable and customary use in describing the
      origin of the Work and reproducing the content of the NOTICE file.

   7. Disclaimer of Warranty. Unless required by applicable law or
      agreed to in writing, Licensor provides the Work (and each
      Contributor provides its Contributions) on an "AS IS" BASIS,
      WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or
      implied, including, without limitation, any warranties or conditions
      of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A
      PARTICULAR PURPOSE. You are solely responsible for determining the
      appropriateness of using or redistributing the Work and assume any
      risks associated with Your exercise of permissions under this License.

   8. Limitation of Liability. In no event and under no legal theory,
      whether in tort (including negligence), contract, or otherwise,
      unless required by applicable law (such as deliberate and grossly
      negligent acts) or agreed to in writing, shall any Contributor be
      liable to You for damages, including any direct, indirect, special,
      incidental, or consequential damages of any character arising as a
      result of this License or out of the use or inability to use the
      Work (including but not limited to damages for loss of goodwill,
      work stoppage, computer failure or malfunction, or any and all
      other commercial damages or losses), even if such Contributor
      has been advised of the possibility of such damages.

   9. Accepting Warranty or Additional Liability. While redistributing
      the Work or Derivative Works thereof, You may choose to offer,
      and charge a fee for, acceptance of support, warranty, indemnity,
      or other liability obligations and/or rights consistent with this
      License. However, in accepting such obligations, You may act only
      on Your own behalf and on Your sole responsibility, not on behalf
      of any other Contributor, and only if You agree to indemnify,
      defend, and hold each Contributor harmless for any liability
      incurred by, or claims asserted against, such Contributor by reason
      of your accepting any such warranty or additional liability.

   END OF TERMS AND CONDITIONS

   Copyright [yyyy] [name of copyright owner]

   Licensed under the Apache License, Version 2.0 (the "License");
   you may not use this file except in compliance with the License.
   You may obtain a copy of the License at

       http://www.apache.org/licenses/LICENSE-2.0

   Unless required by applicable law or agreed to in writing, software
   distributed under the License is distributed on an "AS IS" BASIS,
   WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
   See the License for the specific language governing permissions and
   limitations under the License.

连接方法

• SolaX G2 和 SolaX G3 混合器具有内置以太网接口（Qcells Q.VOLT HYB-G3-3P 尽管命名为 G3，但实际上是 SolaX G4）。
• SolaX G4 和其他设备没有内置以太网，通信可以通过串行 RS485 COM 端口进行。
  • SolaX 设备仅适用 - 不是所有 SolaX 加密狗都提供 Modbus 通信，支持的最低 PocketWiFi 是 PocketWiFi 3.0，PocketLAN 不提供 Modbus 连接。

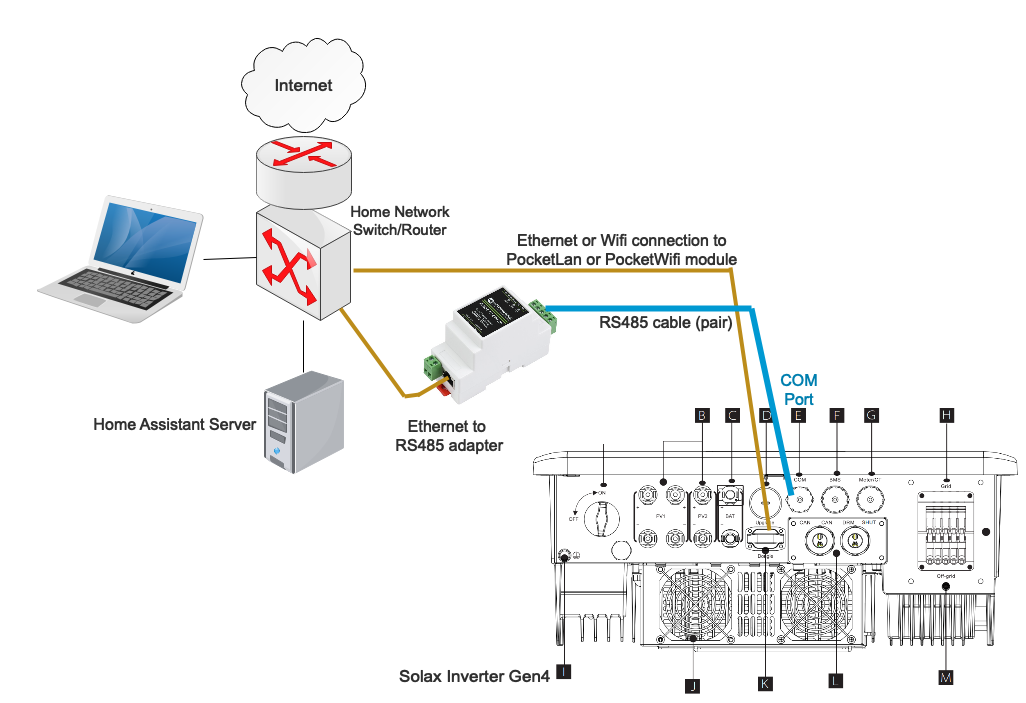

  • RS485 到以太网适配器 - 连接逆变器的最佳方式。

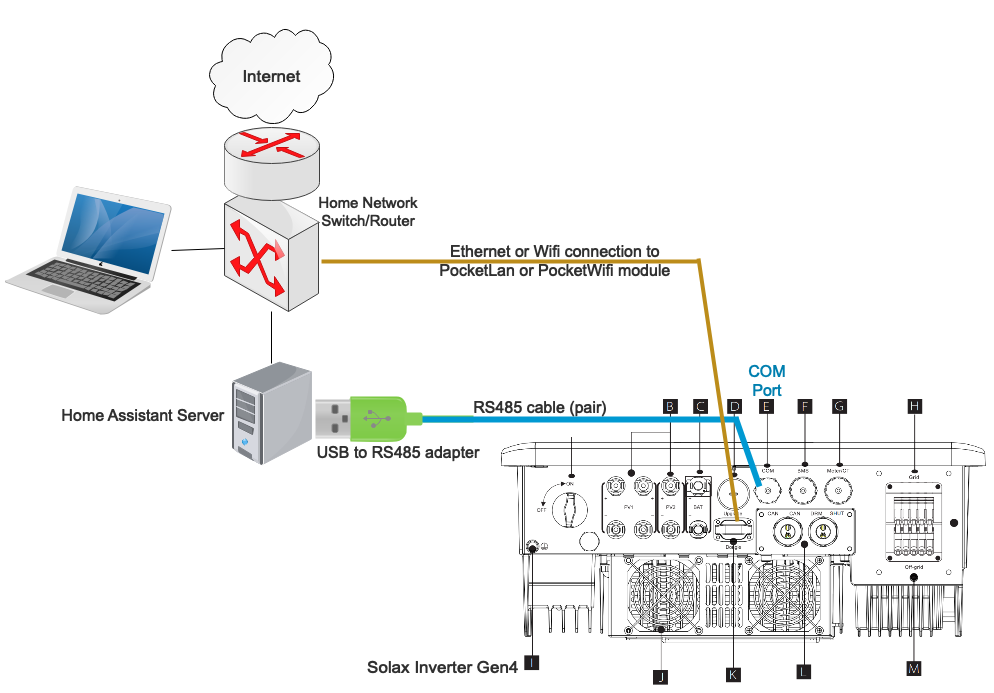

  • RS485 到 USB 适配器 - 不推荐使用，可能会导致 HA 错误。
  • Solis 适配器 - 见下文

RS485 接口仅使用引脚 4（蓝线）和引脚 5（白蓝线）。极性很重要，因此请确保引脚 4（典型电缆中的蓝线）连接到适配器的 A 引线，引脚 5（白蓝线）连接到适配器的 B 引线。

RS485 电缆可以相当长，因此可以达到 25 米或更长。您可以使用标准 cat5 或 cat6 电缆的蓝对。

确保您通过 Wiki 页面 验证逆变器的波特率，并确保它与以太网到 RS485 适配器的波特率匹配。 您可以在逆变器前面的 LCD 屏幕上的菜单中确认波特率。

默认情况下，Modbus 地址为 1。一些人报告他们的 Modbus 地址为 4。

注意：该工作基于 X1 和 X3 设备的通用协议文档。文档并不总是清楚哪些参数不适用于 X1 逆变器，因此某些出现的实体可能在 X1 上没有意义。您可以报告此问题，以便为 X1 移除这些实体。

G4 逆变器上标有 COM 的端口，某些用户手册错误地声称这是以太网端口。

请不要将此 COM 端口连接到以太网交换机 - 如果您这样做，以太网交换机端口将会损坏!!!

Waveshare RS485 到 ETH (B)

• 通过以太网连接到您的家庭网络路由器/交换机

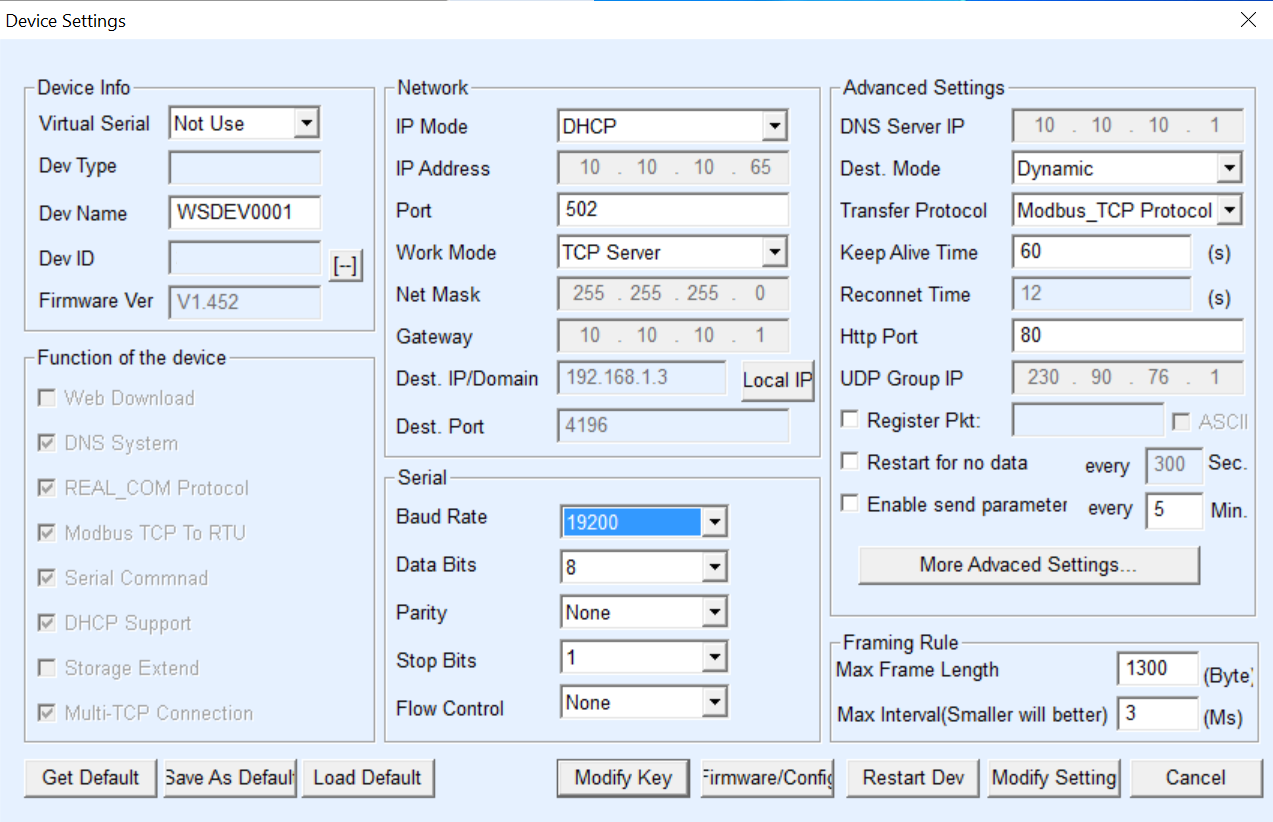

• 使用 "vircom" 工具（Windows）设置与您局域网匹配的 IP 地址（或让设备使用 DHCP，默认情况下不使用 DHCP，但我们推荐使用静态 IP）

• 将其配置为使用 "Modbus TCP 到 RTU"，确保工作模式为 "TCP 服务器"，服务器监听端口 502。确保波特率与您的逆变器的波特率匹配（参见：设置 > 高级设置 > modbus > 波特率）

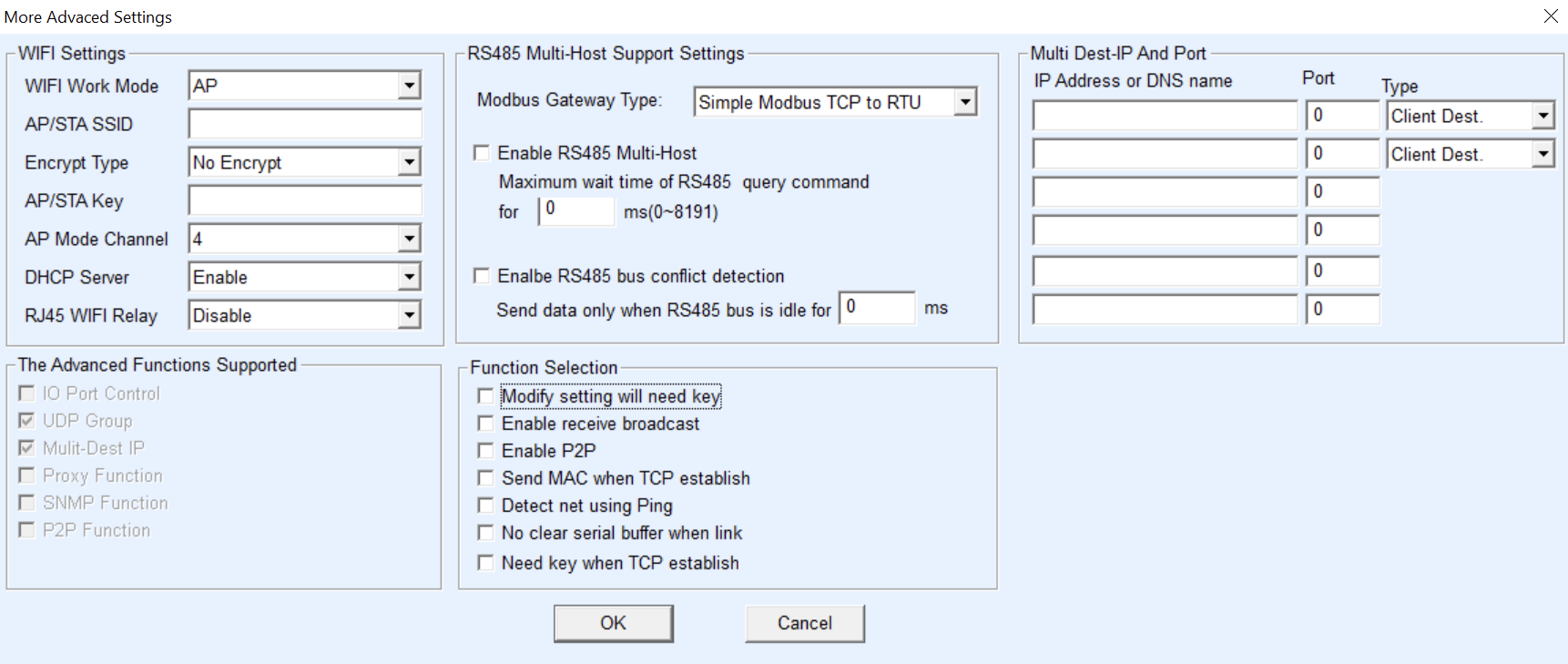

• 在 "更多高级设置..." 中，

  • SolaX 设置 Modbus 网关类型为 "简单 Modbus 到 TCP/IP 模式"
  • Sofar Solar & 可能的 Growatt 设置 Modbus 网关类型为 "自动查询存储类型"
  • 所有其他参数可以保持默认

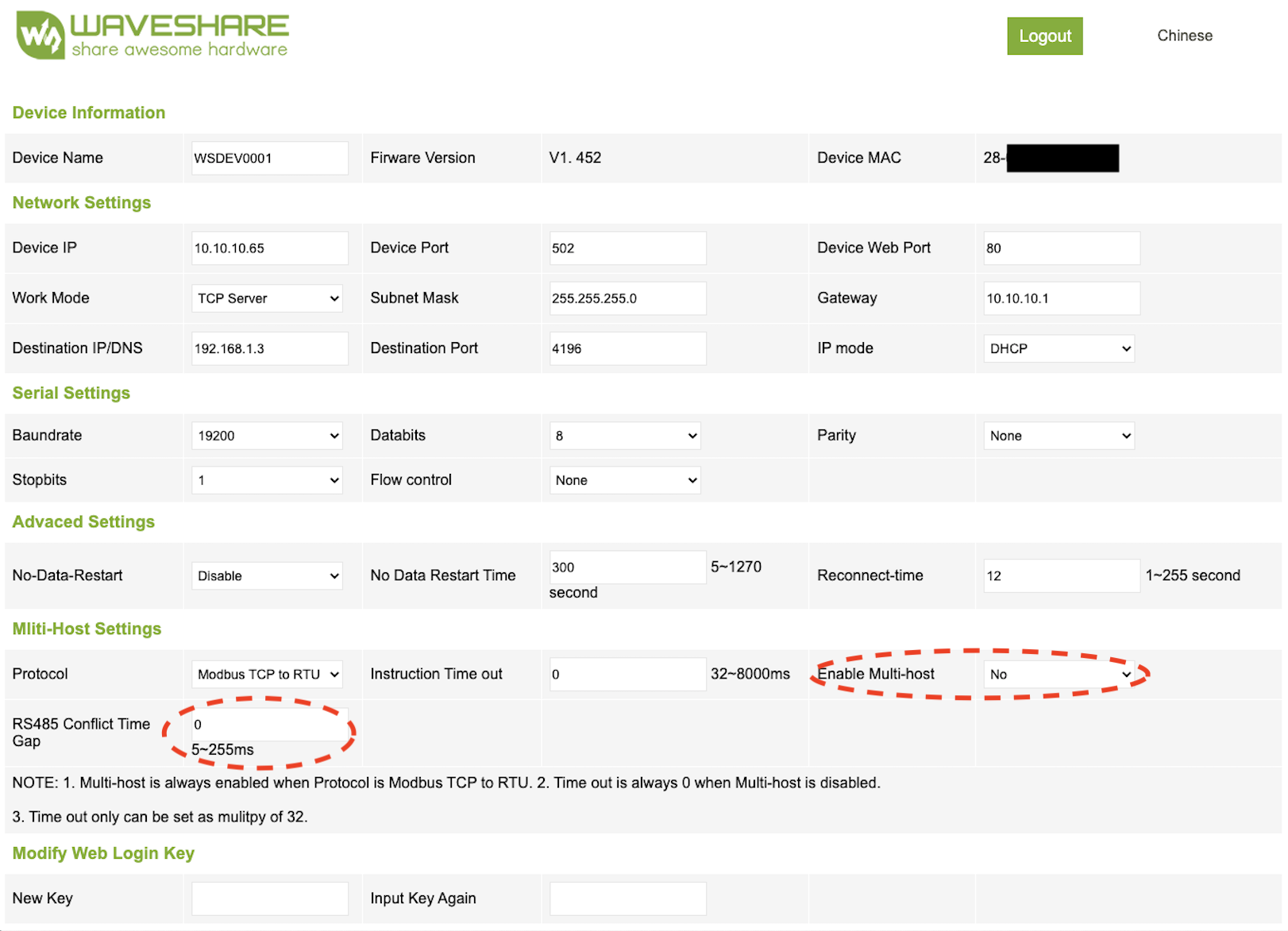

• 您可以通过打开适配器的网页验证配置。它应该显示类似于：

• 在不太可能的情况下，如果您将多个逆变器连接到一个 RS485 适配器，您可能需要修改多主机标志（未经测试）。系统将增加消息之间的间隔，这会降低通信吞吐量。确保轮询间隔足够长（活动指示灯不应一直亮）。

• 如果一切正常，PWR LED 应为红色，LINK LED 初始为绿色，加 HA 建立连接后会变为常亮蓝色。ACT LED 应大部分时间熄灭，但每 15 秒会短暂闪烁绿色（发送）和蓝色（接收）（默认轮询间隔）。根据 Waveshare 文档：

  • 如果链接灯不是绿色，则网络电缆未正确连接，请检查网络电缆。
  • 如果链接灯不是蓝色（仅考虑 TCP 工作模式），则主计算机软件没有建立与串口服务器的连接，请考虑 IP 地址是否配置在同一网络段。
  • 如果活动灯是绿色，这意味着网络端口正在发送数据，但没有串行设备返回数据。请检查波特率是否配置正确，以及 RS485 正负连接是否反向。

在配置 SolaX Modbus 集成时，请指定 Waveshare 设备的网络 IP 地址，而不是 SolaX 的地址。 不要勾选串行 RS485 标志；在此设置中，串行端口会被忽略。

USB 到 RS485 适配器

• 直接通过 USB 连接到您的 HA 系统
• 这种低成本模型可以在各种电子商店找到，搜索 USB RS485
• 芯片组 CH340C（带有 FTDI FT232 芯片组的类似产品也应能正常工作，但成本更高）

在配置 SolaX Modbus 集成时，请勾选 'RS485 串口' 标志，并指定实际的串口名称（如在 'ls /dev/ttyUSB*' 的输出中所见）。如果您有多个 USB 设备，使用在 'ls /dev/serial/by-id' 的输出中看到的名称更为合理。在此设置中，IP 地址和 TCP 端口无关紧要，使用 'localhost' 作为 IP 地址，TCP 端口保持默认 502。

多个逆变器连接到一个 RS485 适配器 & 终端电阻

将多个逆变器连接到同一个 RS485 适配器（例如 Waveshare）应该是可行的。逆变器必须具有不同的 Modbus 地址，因此您需要先更改逆变器的 Modbus 地址。然后为每个逆变器配置一个实例。配置对话框允许您设置 Modbus 地址。

连接多个逆变器时需要使用终端电阻。在 RS485 适配器的 A&B 之间放置一个 120欧姆电阻，并在最后连接的逆变器的 A&B 之间放置一个 120欧姆电阻。

SolaX PocketWiFi 3.0

此接口需要更多测试，无法保证正常工作：

• 将加密狗连接到您的 Wi-Fi 网络
• 将固件更新到最新版本
• 使用加密狗的 IP 和其他默认设置进行集成。

功能和依赖关系的比较：
